EMS Engraving unit

Code: CC-EMS-EN-U

 Εngraving EMS

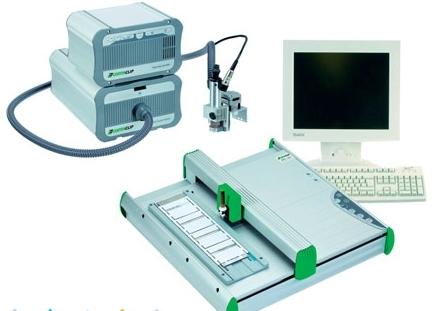

Engraving module for EMS-2 plotter including: spindle, controller, vacuum cleaner and 0.4-mm graver. This addition extends the EMS plotter so it can be used as an affordable engraving tool for aluminium or plastic.

The EMS-2 plotter makes it happen. Engraving and plotting combined in a single device.
The plotter ESM-2 is converted within minutes to an engraving machine. The pen unit on the plotter arm is replaced by the spindle unit , the vacuum cleaner and controller are connected to the plotter and spindle.
The software CONTA-SIGN controlsboth plotter and engraving options - there is no needto adaptto new software.

Order No.Type - DescriptionPack qty.
1621.0 EMS Engraving μονάδα χάραξης 1

For more information click pdf file : EMS Engraving unit

The inlay CCI-8 used to fix the engraving cards onto base of the plotter.

Order No.for holding CONTA-CLIP markers of typePack qty.
1604.0 CCI-8 ESO GT1, ESO GT2, ESO, BST 8, KKE...A4, GKE...A4, GMP...,GMA... 1


Order No.Type - DescriptionPack qty.
1623.0 Graver set for plastic, 0.2mm 1
1624.0 Graver set for plastic, 0.3mm 1
1625.0 Graver set for plastic, 0.4mm 1
1626.0 Graver set for plastic, 0.5mm 1
1627.0 Graver set for plastic, 0.7mm 1
1628.0 Graver set for plastic, 1.0mm 1
1635.0 Graver cutter for aluminium, 0.2mm 1
1636.0 Graver cutter for aluminium, 0.4mm 1
1637.0 Graver cutter for aluminium, 0.6mm 1
1638.0 Graver cutter for aluminium, 1.0mm 1
1684.0 Graver cutter for aluminium, 1.4mm 1
1688.0 Graver cutter for aluminium, 2.0mm 1
1689.0 Graver cutter for aluminium, 2.4mm 1
