Enrgaving MGS 50 / MGS 60

Code: MGS-50-60

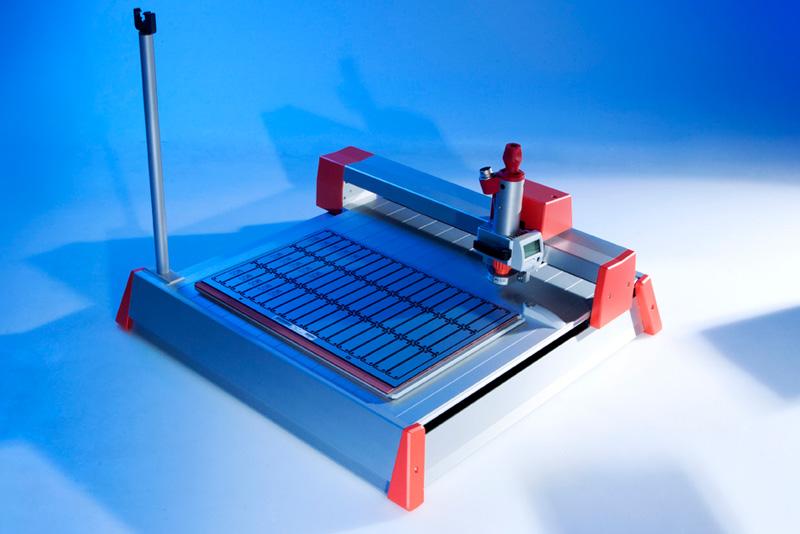

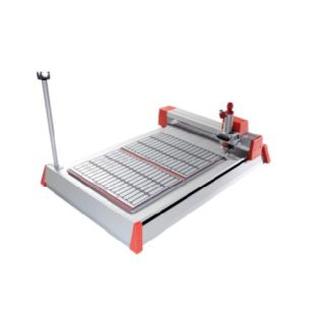

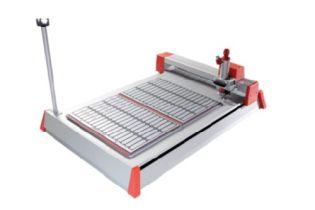

Engraving MGS 50 / MGS 60.

Flexible and handy engraving device, for engraving plastic and aluminium materials (DM, DMG, ALU, ALM).

Engraving system based on a plotter design, with permanent engraving head (lifting unit).
Available in A4 (MGS 50) and A3 (MGS 60).

Order No.Τype / descriptionPack qty.
86622026 MGS 50 A4 Engraving system 1
86622028 MGS 60 A3 Engraving system 1
includes:
* Εngraving system 60
* Engraving spindle
* Stand with fixation for cable & tube

* Power cable
* Power cable (US-version)
* Connection for engraving spindle
* Connection for suction device
* suction tube
* USB cable
* User manual
 Vacuum base plate  A4 for engraving set
86622064 MGS (40-TO/50/60) 1

86622066

 MGS (40-TO/50/60) 1

For more information click here : MGS Engraving systems

.

Order No.Τype / descriptionPack qty.
86691037 MGS 50 / MGS 60 depth adjuster    1
86691035 MGS 50 / MGS 60 engraving spindle 1

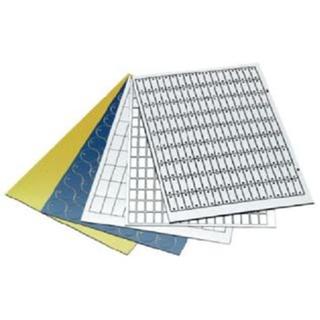

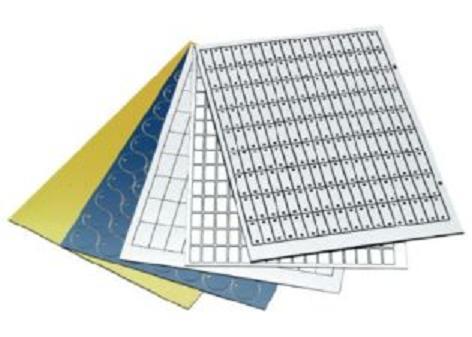

Double-layer material with a coloured outer layer in various colour combinations

Optionally available with self-adhesive foil (SK), strong self-adhesive foil (SSK) or adhesive foil (HF)
Borderless mat, available in square versions with and without corner radius, optionally with holes or granulation
UV resistant outer layer
Thickness: 0.8 mm or 1.5 mm
Labelling methods: Engraving and plotting

-30°C – 80°C


Order No.Τype / descriptionthickness(mm)Pack qty.
8602200031 DMG 300x200 SK Yellow / black 0,8 1
8602200032 DMG 300x200 SK Silver / black 0,8 1
8602200033 DMG 300x200 SK Silver SIEMENS / black 0,8 1
8602200035 DMG 300x200 SK Red / white 0,8 1
8602200037

DMG 300x200 SK black / white

0,8

 1
8602200039 DMG 300x200 SK white / black 0,8 1
8602200043 DMG 300x200 SK Blue / white 0,8 1
8602200048 DMG 300x200 SK Orange / white 0,8 1
8602200054 DMG 300x200 SK Green / white 0,8 1
8602200059 DMG 300x200 SK Grey / black 0,8 1
8601200054 DM 20x60 SK White / black 0,8 42
8601200227 DM 40x150 SK White / black 0,8 7
8601200238 DM 40x20 SK White / black 0,8 63
8601200266 DM 70x160 SK Red / white 0,8 4

For more information clikc here: Labelling

Order No.Type / descriptionPack qty.

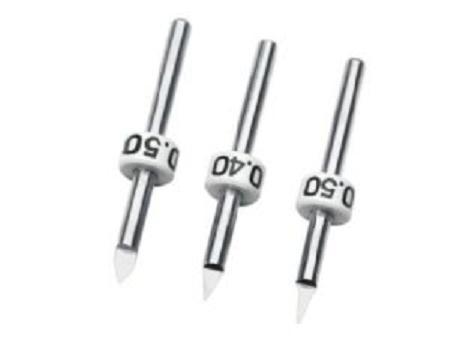

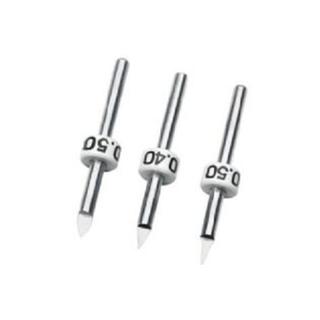

86721424 Graver 15° , d=0.2 mm 1
86721426 Graver 15° , d=0.3 mm 1
86721428 Graver 15° , d=0.4 mm 1
86721430 Graver 15° , d=0.5 mm 1
86721432 Graver 15° , d=0.7 mm 1
86721440 Graver 36° , d=1.0 mm 1

 For more information click here : Graver
